Project 2002 Raptor 660 |
|
|
|
|

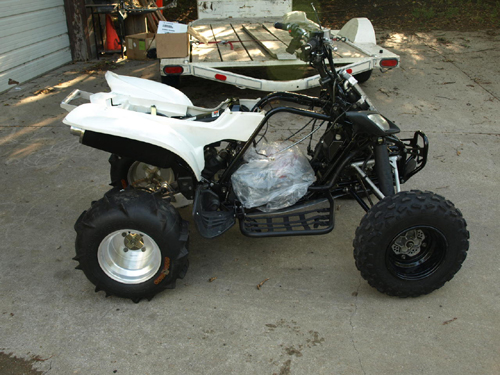

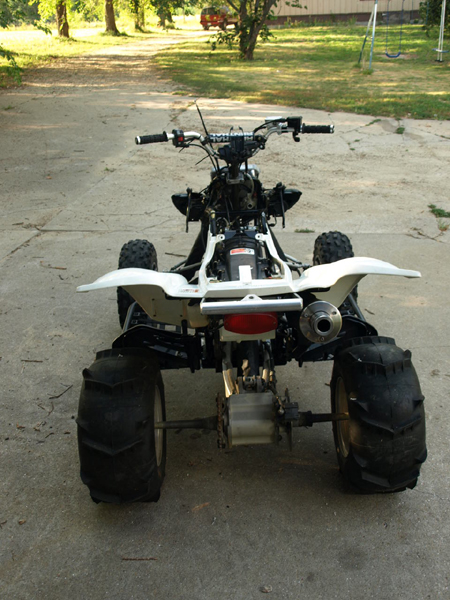

Rear fender bolt on and ready for mounting tab repairs. |

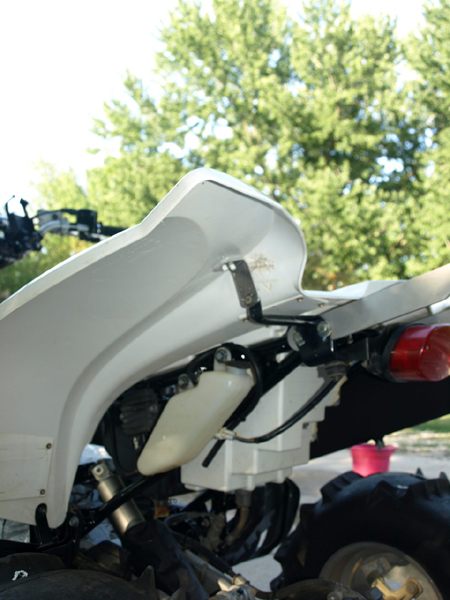

Left fender mount made and bolted on and riveted to the fender. |
|
|
|
|

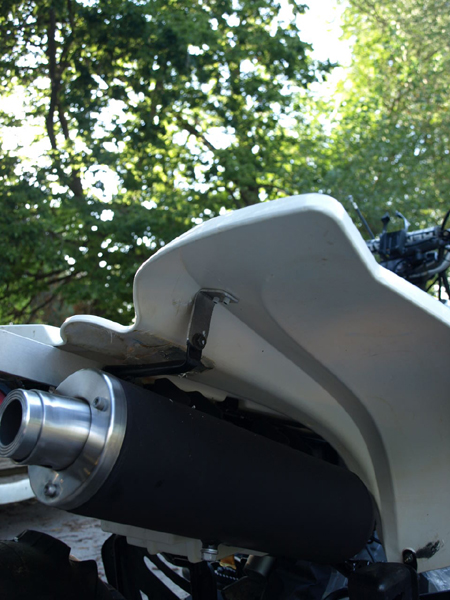

Right side done. |

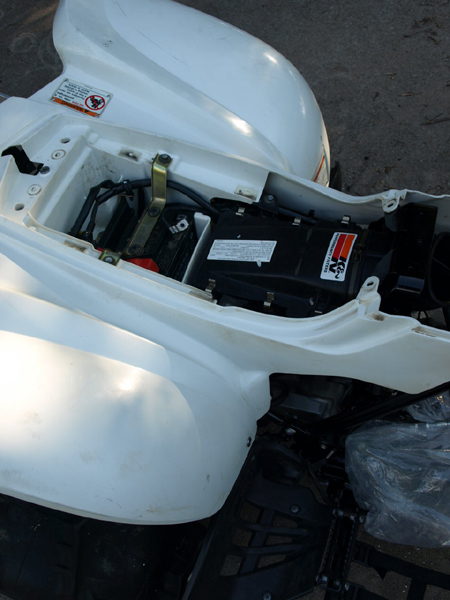

K&N filter and outerwear installed in the air box and the box mounted up permanently. |
|
|
|
|

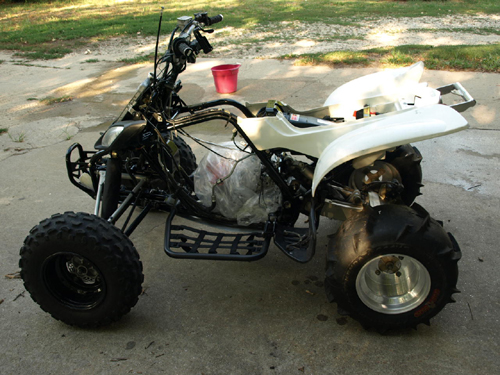

Done for now. Parts ordered July 28, 2012 so I should be able to finish soon. |
|
|
|
|
|

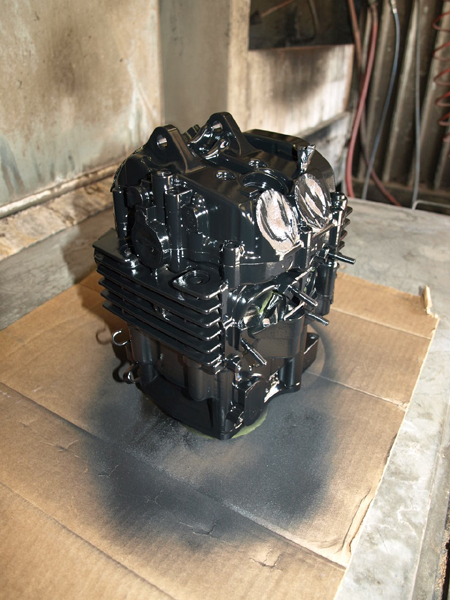

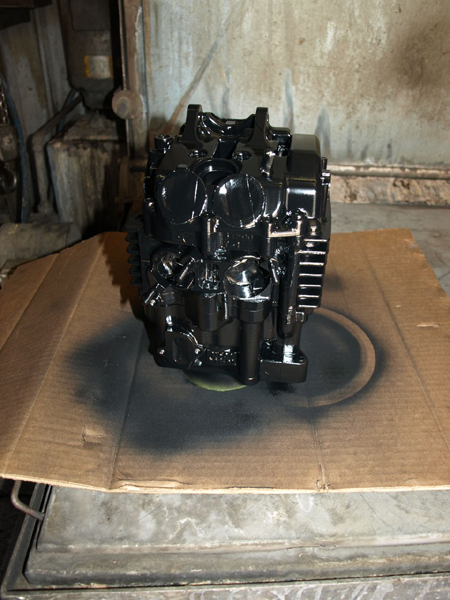

Cylinder, head, and rocker cover dummy assembled for paint. |
I used VHT engine enamel for this part of the project. |
|
|
|
|

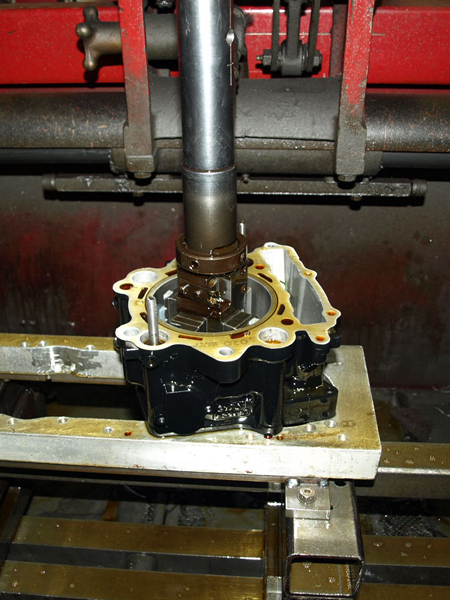

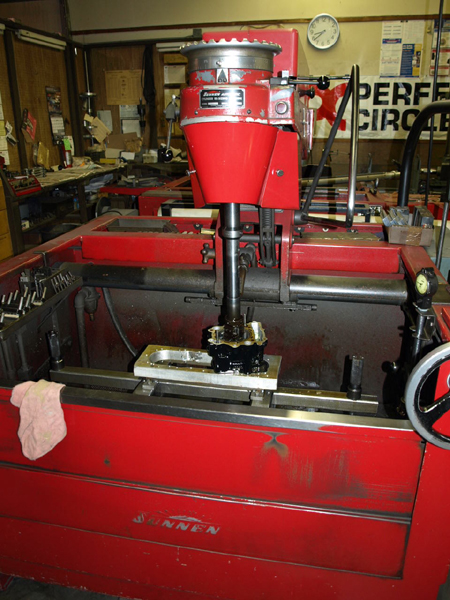

Cylinder in the honing machine to bore and hone .020"oversize. |
|
|
|
|
|
Thanks to Steve Nutsch at Brooks Yamaha, some of the new parts arrived mid-week. |

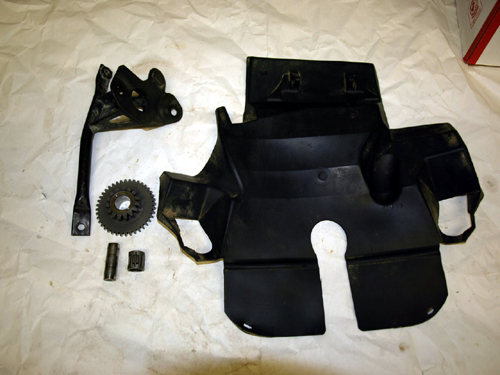

Here are the used parts I needed. Got these from a guy on the Raptor Forums |
|
|
|
|

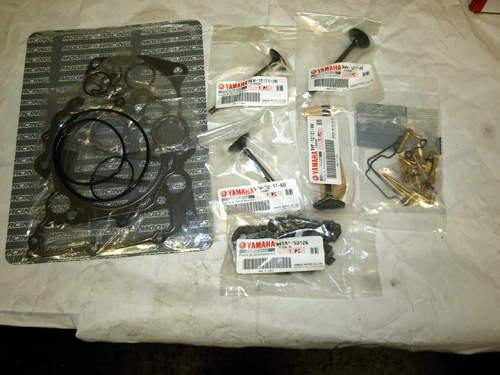

Three new intake valves and one new exhaust. |

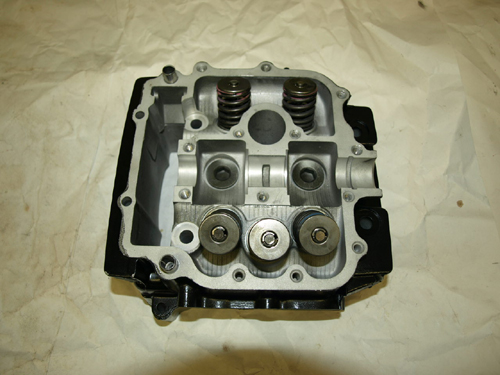

New seals installed and valve springs in place. Head is ready for installation. |
|
|
|
|

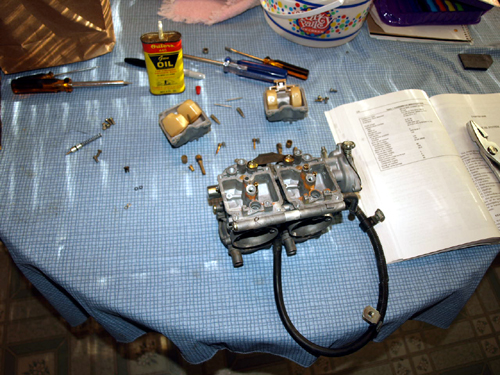

Carbs all laid out and ready for kits. The orange is stains that would not come off. |

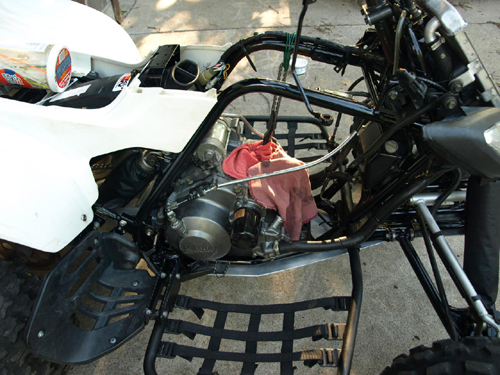

Timing chain and flywheel installed. |
|
|
|
|
Stator cover on and buttoned up. |
|
|
|
|

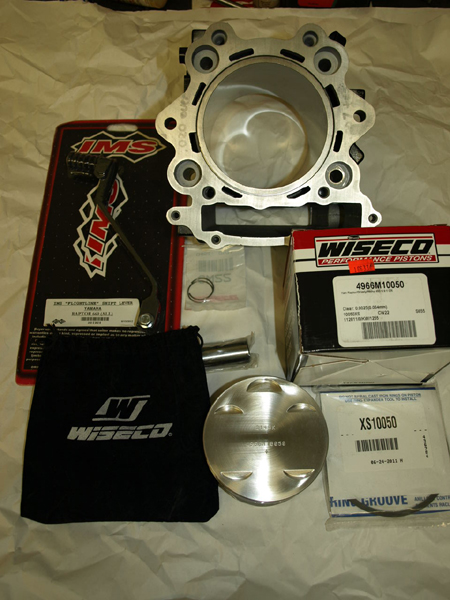

Piston, rings, and shifter showed up so I was able to finish the cylinder to size. Thanks again Steve Nutsch! |

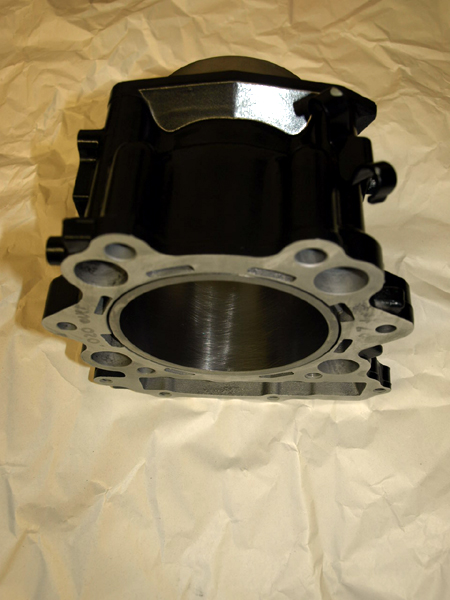

Finished cylinder all cleaned up and ready to install. |
