Project 2005 Raptor 350

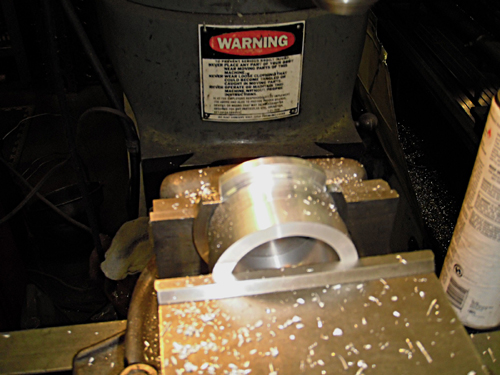

Got ahead of myself and didn't get pictures roughing in the intake adapter. Here I milled the sides so it will clip into the air box.

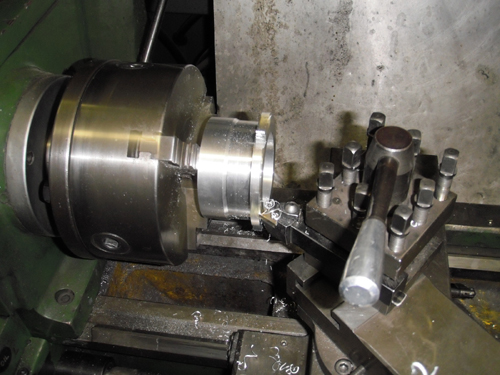

Trimming up the mating surface so it will fit in the slot in the air box.

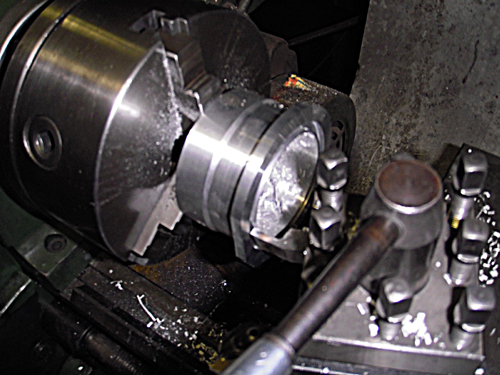

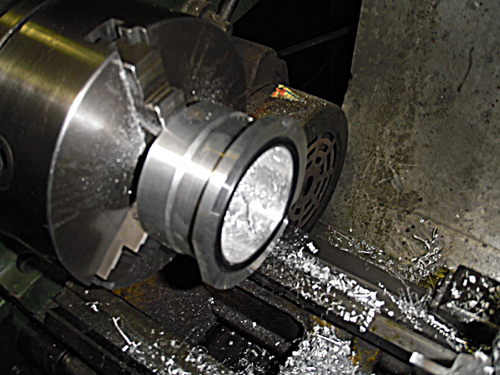

Here I am using a parting tool to cut a groove for the 2 5/8" x 1/4" o-ring to sit in.

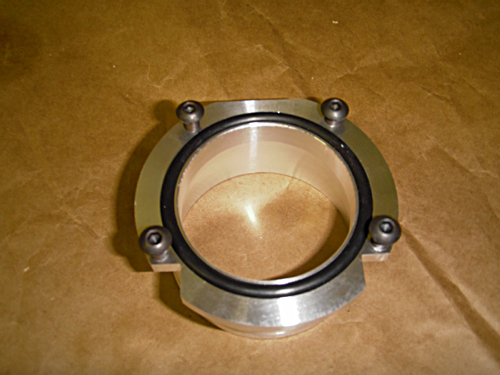

Finished and test fit the o-ring and all is good here so on to the next step.

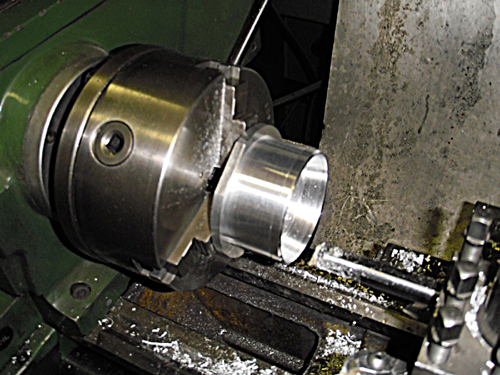

Cutting the inside bore to a taper to help the flow transition to the hole in the air box.

Finished the taper so on to the next step and finished the outside for a 3" clamp on filter..

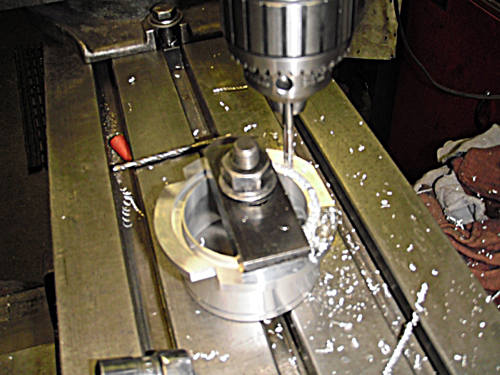

Drill and tap 4 1/4 x 20 holes to attach it to the air box.

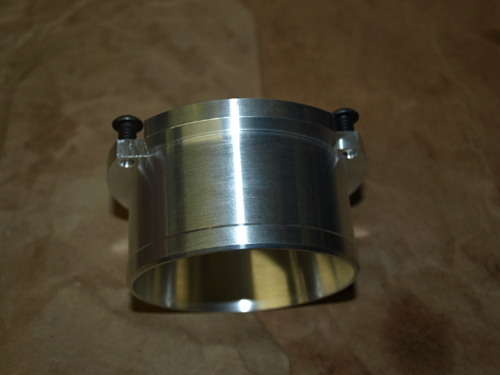

Finished adapter mounting face.

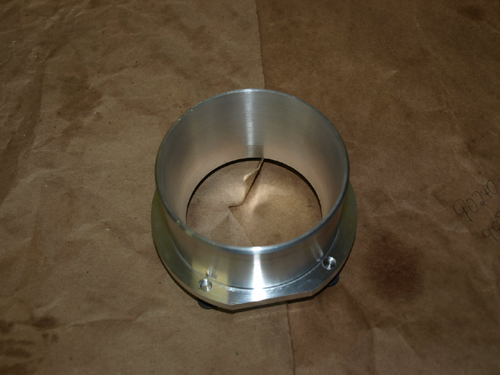

Finished outside diameter. I made the lip wider so I wouldn't have to modify the air box at all.

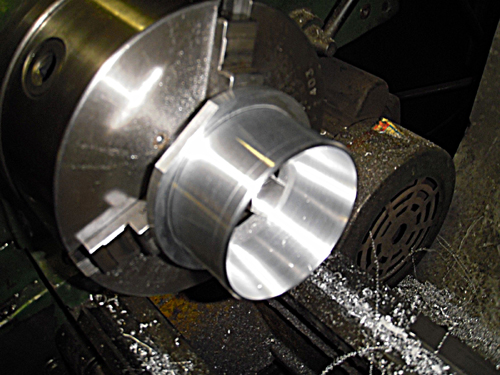

Finished inside taper.
