Project 2002 Raptor 660

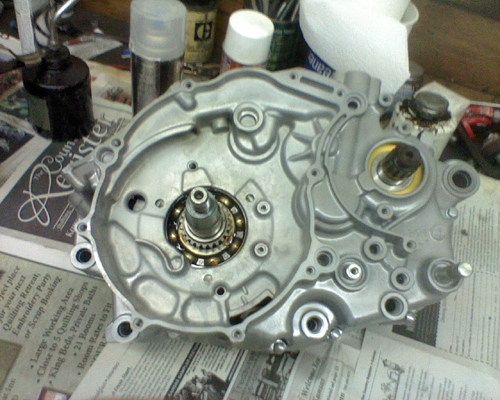

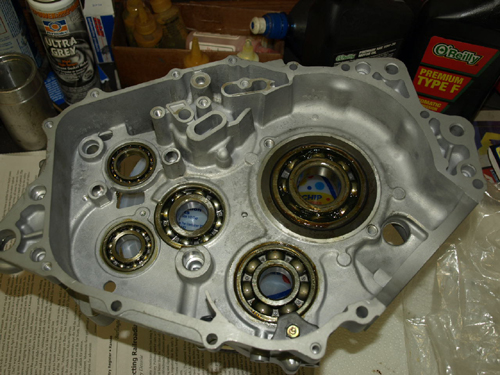

Other half of the case showing the new bearings installed.

Case halves assembled and sealed up.

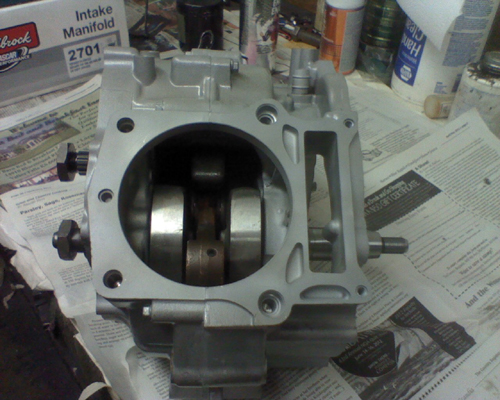

Crankshaft view.

Stator side of the engine.

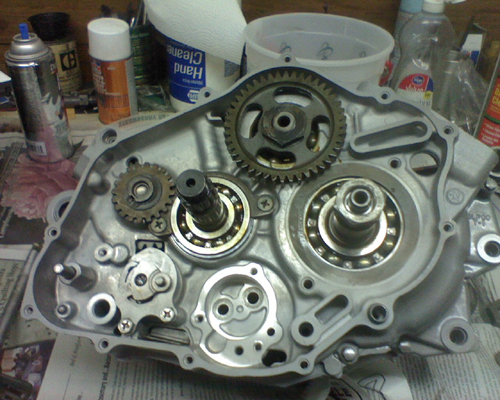

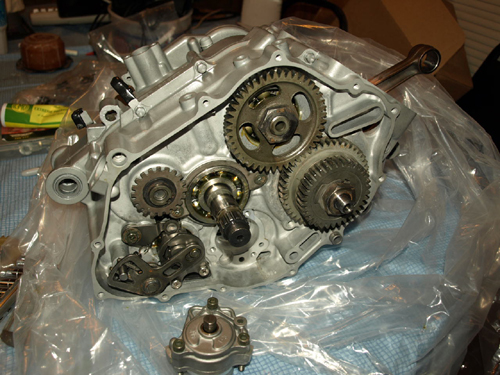

Clutch side with balance shaft gear dummy assembled on.

Oil pump cleaned and lubed and ready to install.

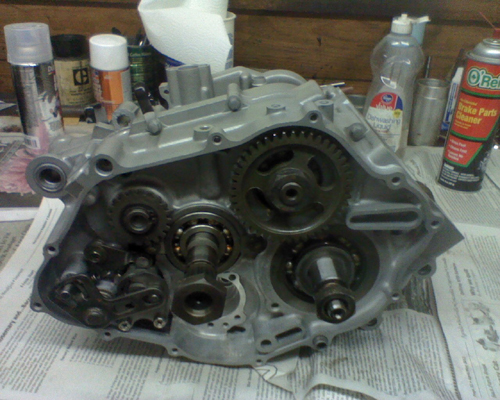

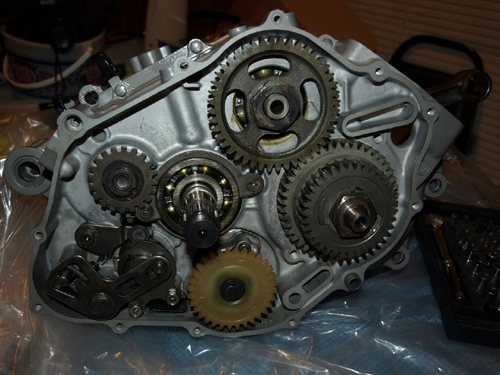

Oil pump installed and crank gear mounted up.

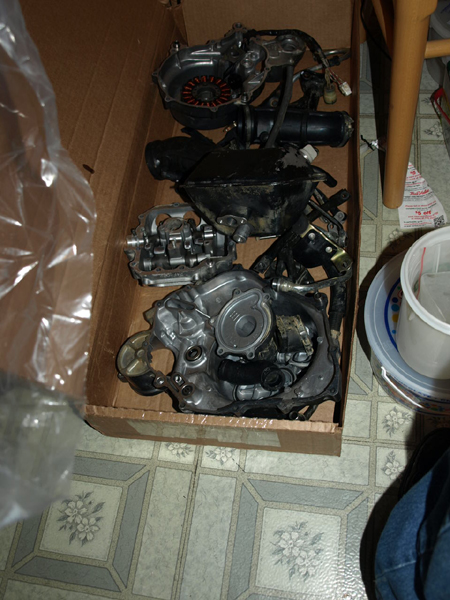

Remaining parts hand cleaned and ready to bolt back on.

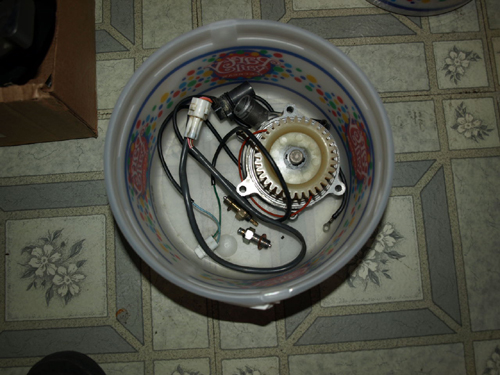

Water pump and some of the wiring ready to go back on.

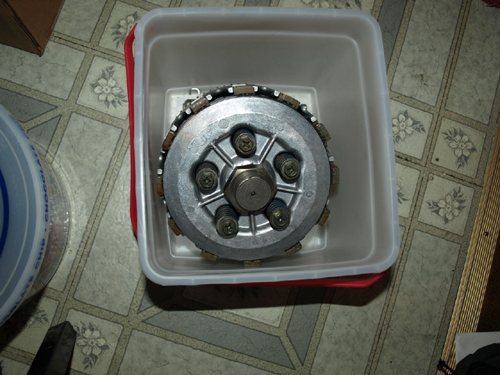

Clutch assembly cleaned, inspected and ready to install.
